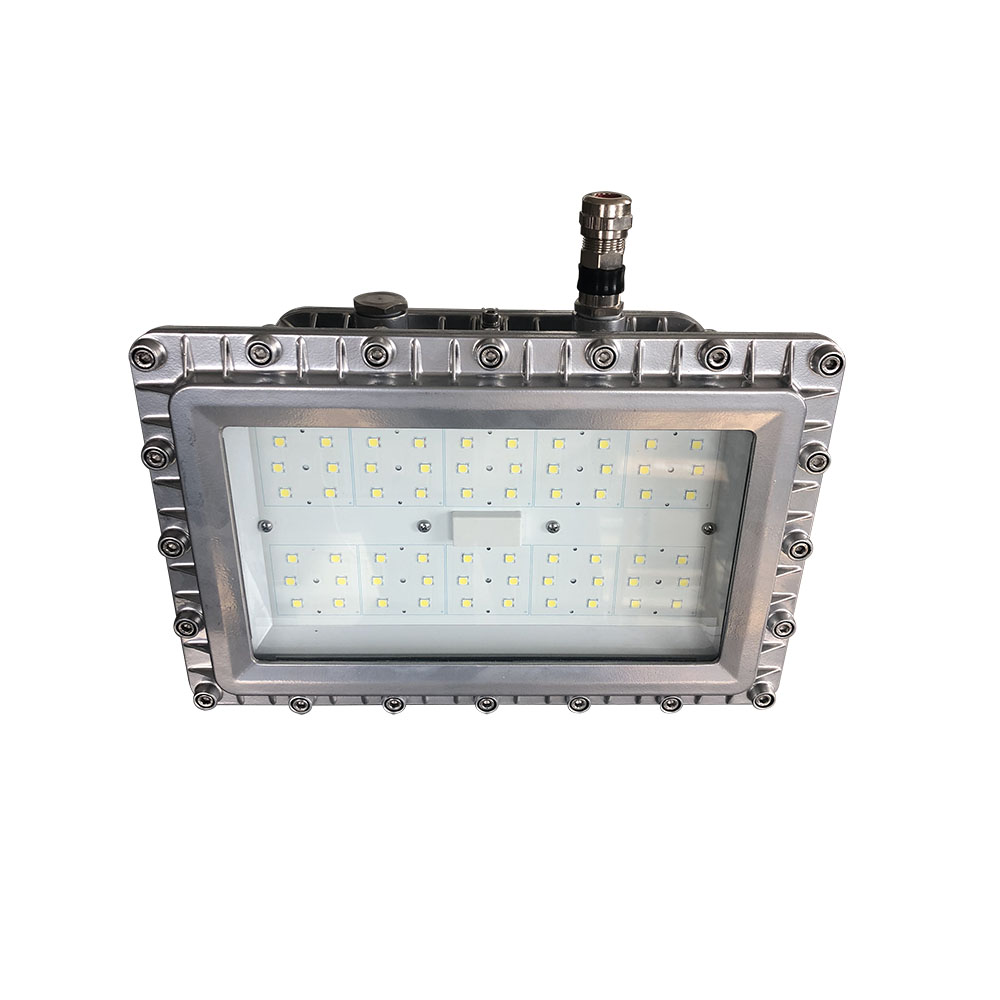

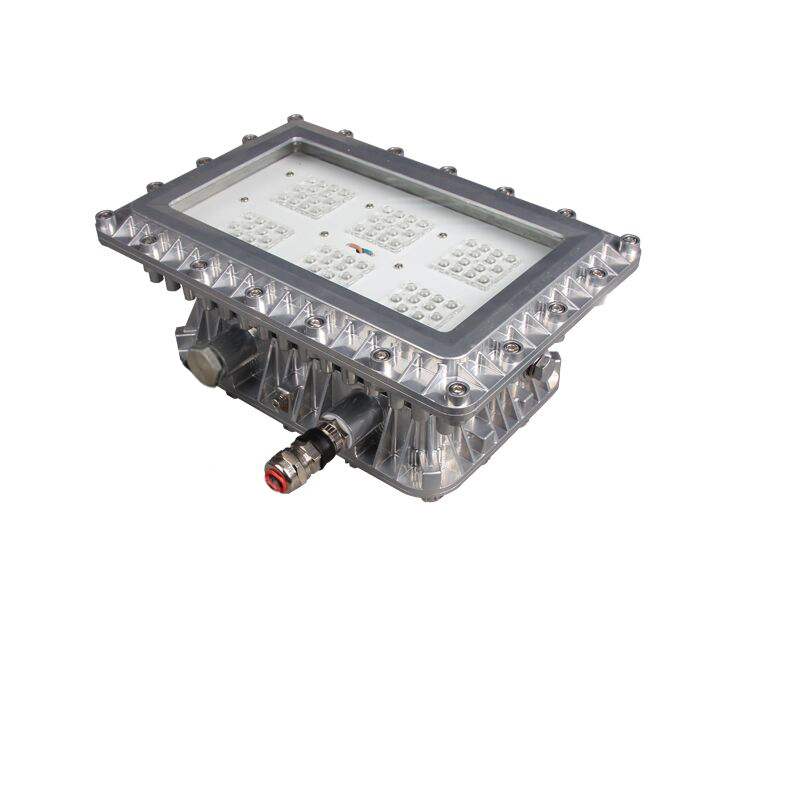

Power Plant IP66 LED explosion proof flood lighting fixture

Product Description

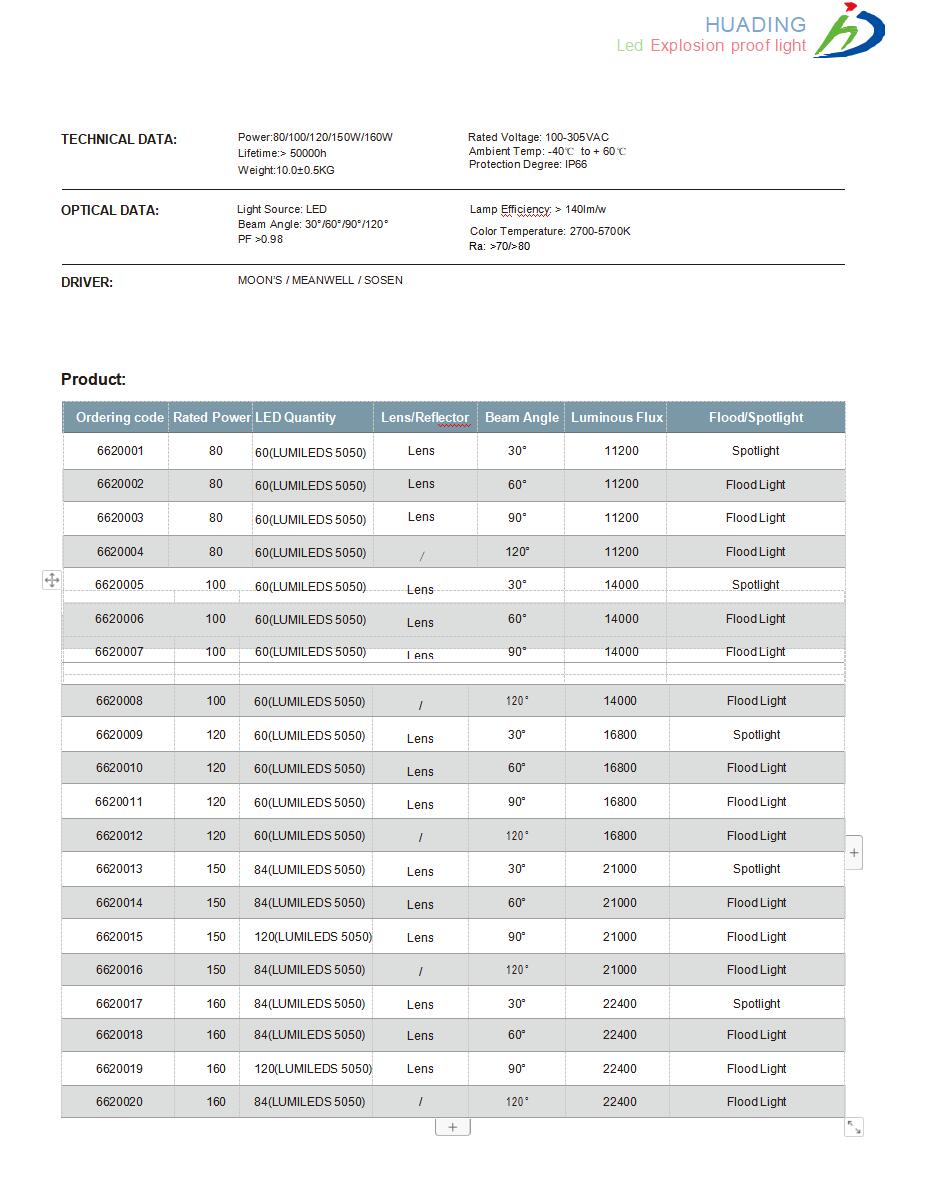

Products Description High Lumen output Lux SMD 5050 Waterproof 80W 100W 120W 150W 165W IP66 & IP67 LED explosion proof Flood Light for Zone 1 & 2 and Zone 21 & 22
Power
80/100/120/150/160W
Beam Angle
30°/60°/90°/120°

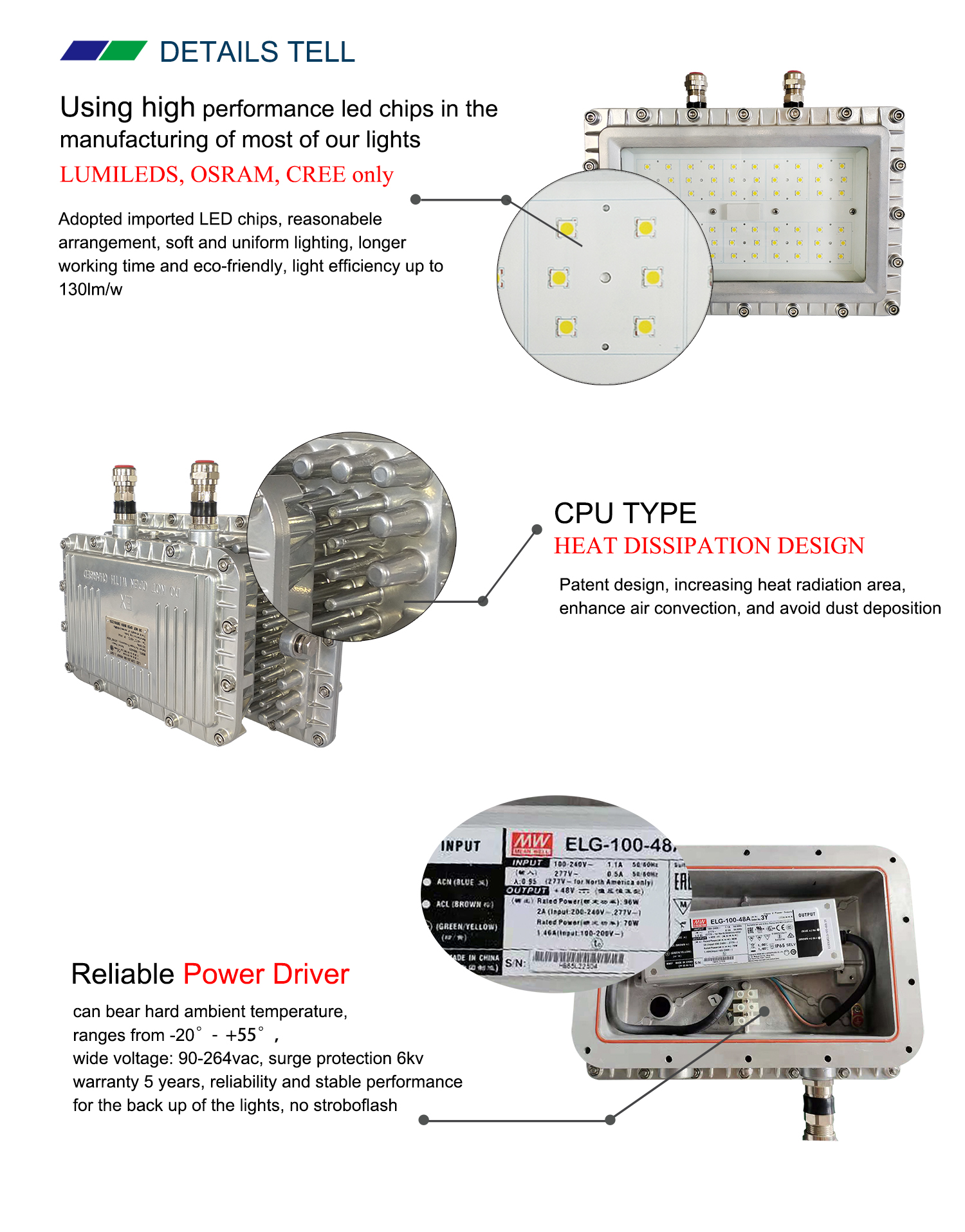

Driver
Meanwell/Moons
Inrush Current
<65A
Cable Entries
G1/2”-3/4”
NPT1/2”-3/4”
M20*1.5-M27*1.5
Net weight
10kg
Light Fixture Size
362*290*240mm
Packing Size
395*275*200mm
Features + benefits

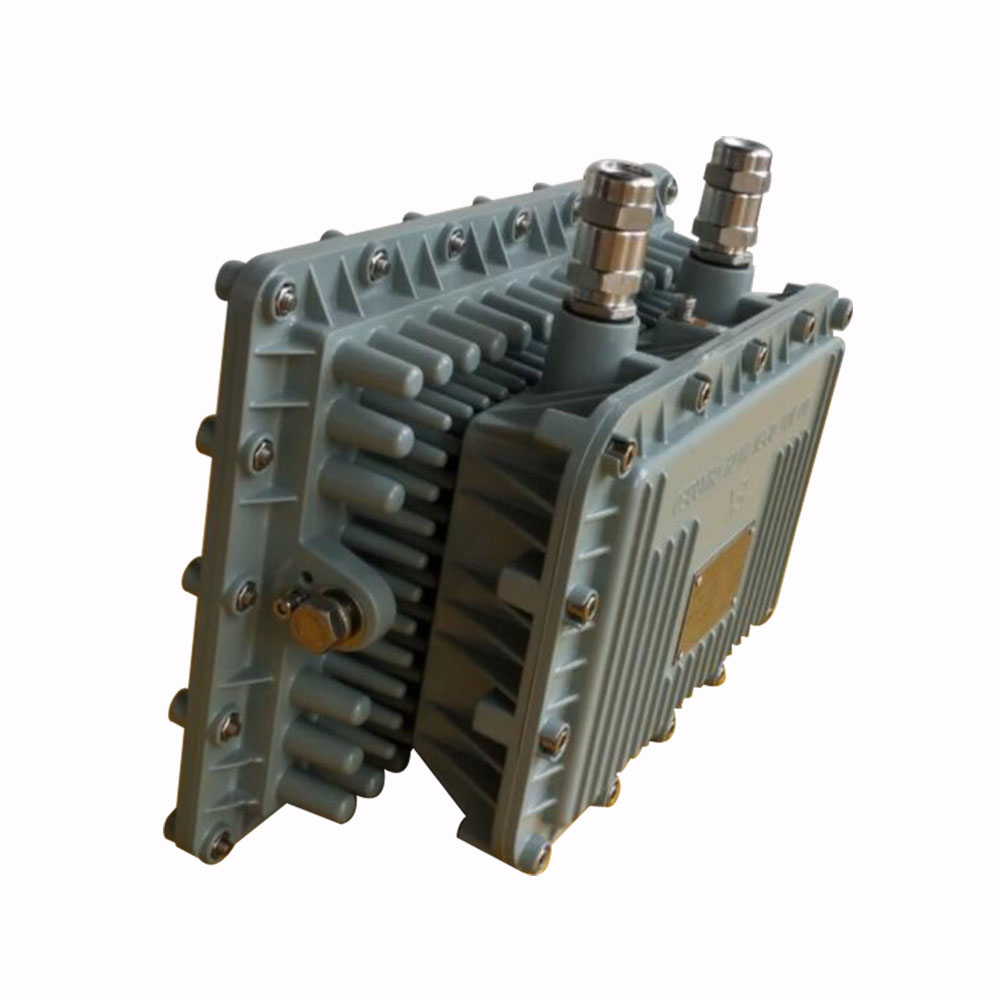

The BHD6620-xxxx range is designed specifically for harsh & hazardous environments which require high performance,high reliability, White-Light, safety and durable illumination. Using HUA DING's professional LED technology, BHD6620-xxxx is ATEX and IEC Ex approved for all Zone 1 applications and rated for T5 and T6 environments.BHD6620-xxxx is ideal for applications where space is restricted with its compact, low profile design, which also allows easy access to the back of the unit with rear cable entries so cabling can be hidden and protected from damage. Housed in marine grade aluminium, BHD6620-xxxx is IP66 and IP67 rated and can survive the most extreme environments. BHD6620-xxxx is available in a range of different beam patterns, such as 30º 60º 90º 120º, with revolutionary interchangeable PC lens inserts which can be easily altered on site delivering the ultimate flexibility to specifiers,distributors and end users. Delivering high performance illumination of up to 24,050 lumens,
CERTIFICATIONS
BHD6620-xxxx series is a hazardous location LED lighting fixture Class I Division 2,
Groups A,B,C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22.
HOUSING BODY
Aluminum alloy ADC12
LENS
4mm thick tempered glass & PC reflector 30º 60º 90º 120º
+95% light transmission.Shock and vibrations resistant.
PERFORMANCE
12,000 to 24,050+ lumens
Up to 160 lm/w.
From 80W up to 160W.
L70 (hrs) rated > 65,000.
IP66 & IP67 RATED
Dust tight and protected against the effects of immersion in water to depth between 15 cm and 1 meter.
1-10V, DALI dimming standard.
Ideal for heavy industry, mining, refineries, chemical industry, coastal
marine facilities and corrosive applications.
MOUNTING
Surface/wall mount standard (adjustable mount bracket included).Pendant kit optional.
OPERATING TEMPERATURE
From -40°F up to 122°F (-40°C to 50°C).
DIMMING
1-10V dimming standard , DALI, Triac
CertificationATEX Rating: ATEX and IEC Ex rated for Gas and Dust
Hazardous Area rating: Zone 1 - Gas and Dust Mechanical/EnvironmentalBurning position: Universal
IP rating: IP66
Temperature range: -30°C to +50°C (-20°C to +46°C for emergency variants)
Weight: Please contact HUA DING for copy
Enclosure: Marine grade aluminium epoxy powder coated, toughened glass, all external
fasteners and brackets are marine grade stainless steel
Unit Colour: grey , yellow, silver
Installation instructions: Please contact HUA DING for copy
Dimensions: Please contact HUADING for copy

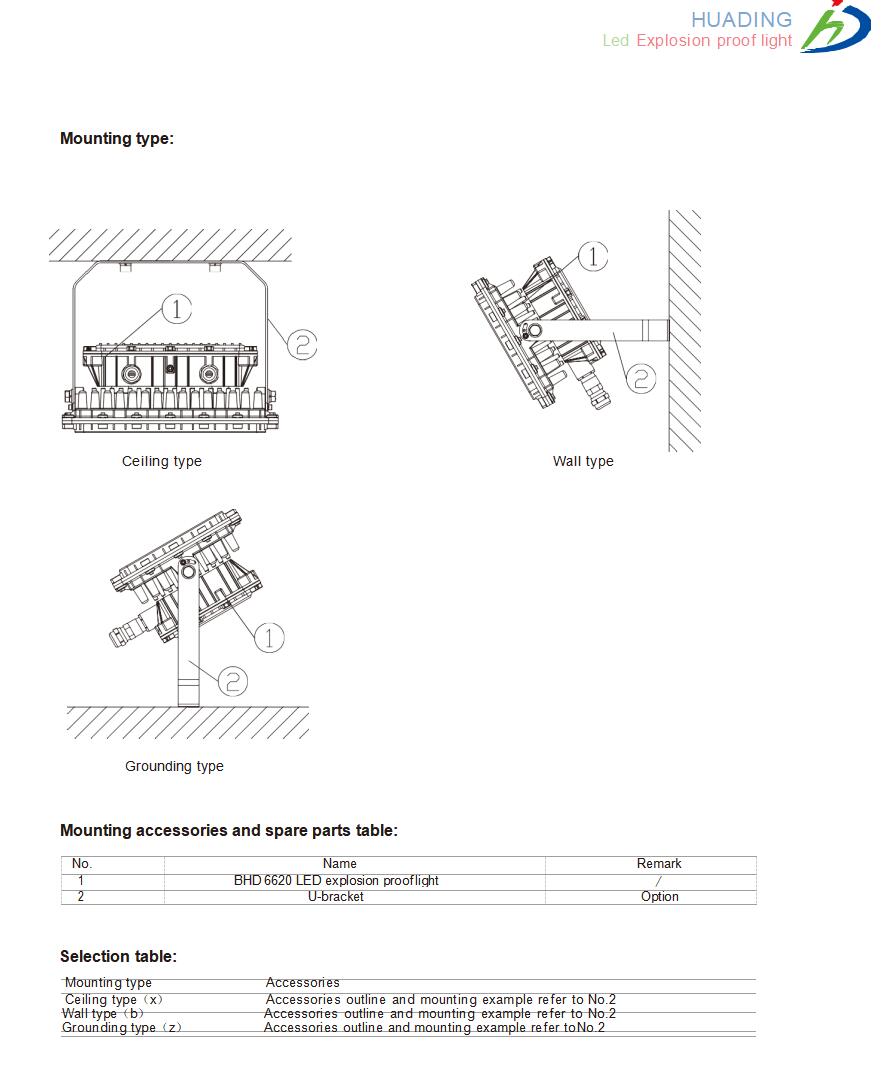

Mounting: Comes complete with stainless steel brackets(as shown on below )
Other options available
